framework

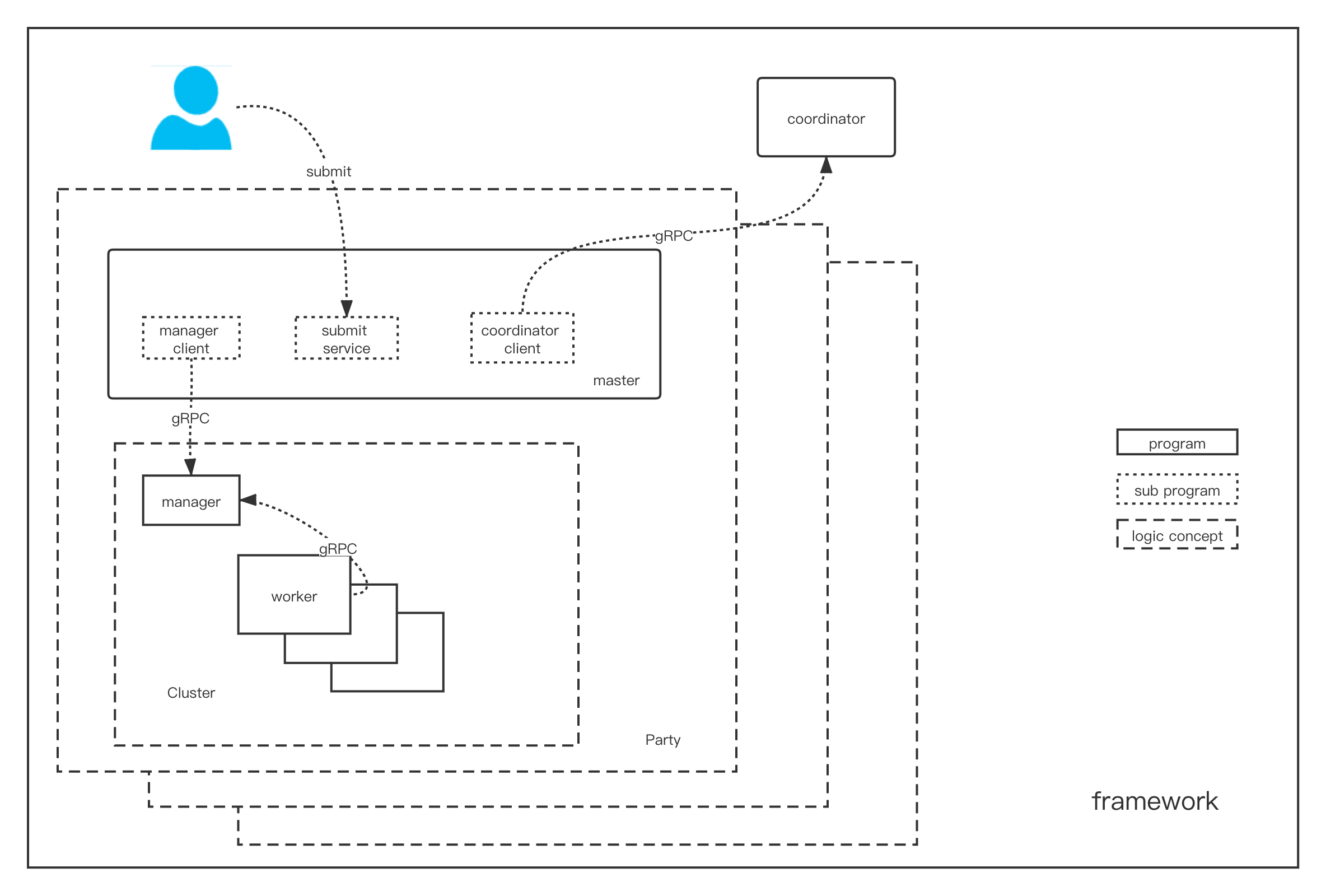

Overview

There are two role associated in FedVision:

1. coordinator

2. Party

Coordinator is an independent role responsible for handling job publish and distribute subtasks to proper parties that have subscribed to the coordinator. Usually, the coordinator must be started before any party can subscribe to it. The party will post the job of the specified job_type to the coordinator and wait for proposal_waiting_time seconds. While waiting, all party subscribed to this job_type will received a message, and then decide whether to participate or not. After the waiting time is over, the coordinator selects a group of party as a participants in this job.

Party is an independent role that publishes or subscribe jobs. usually, It has a Cluster to process assigned tasks, and a submit service to process work requests from Users, a coordinator clients publish jobs toCoordinatoror subscribe jobs from "Coordinator" and, amaster` to mixes them up.

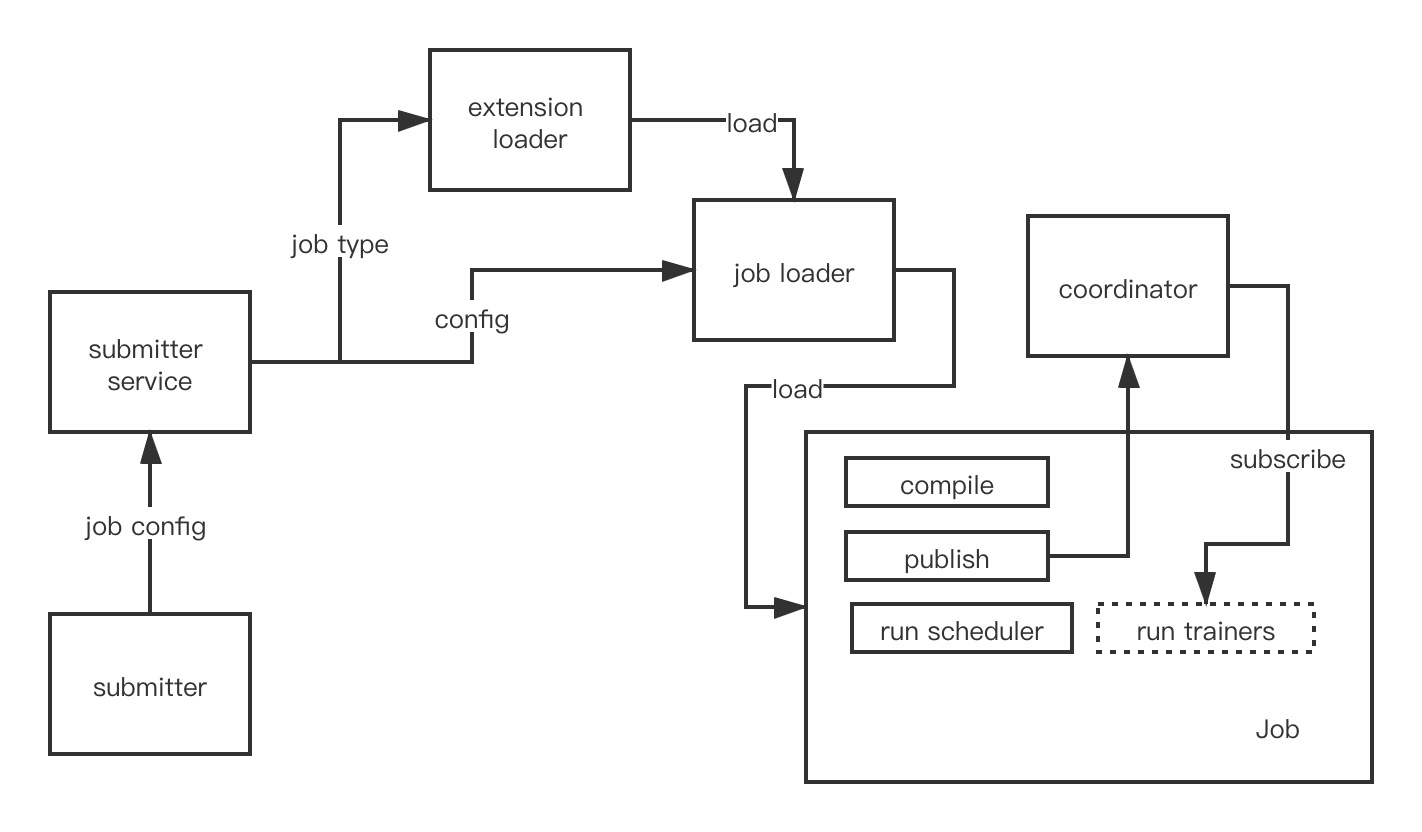

Job's Life Cycle

The FedVision framework is an extensible framework. When the master receives the job submit request, it will use different job loader according to the job_type parameter. This makes it possible to extent FedVision framework with various machine learning frameworks.

Currently, only PaddlePaddle supported with extension configuration file:

PaddleFL:
  jobs:
    - name: paddle_fl
      schema: ../schema/paddle_fl.json
      loader: fedvision.paddle_fl.job:PaddleFLJob
  tasks:
    - name: fl_trainer
      loader: fedvision.paddle_fl.tasks.task.trainer:FLTrainer
    - name: fl_aggregator
      loader: fedvision.paddle_fl.tasks.task.aggregator:FLAggregator

To implement an new extension, one need to

1. add configuration to extensions.yaml

2. implement abstract job class

3. implement several abstract task class used by job.
